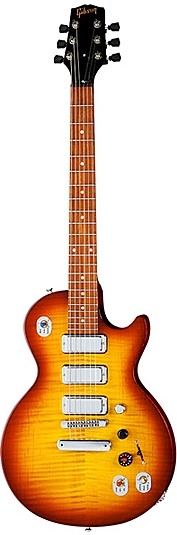

Gibson`s X series is continued with the LPX model, the X variant of the classic Les Paul. As opposed to the Firebird X which was thrown into the uncharted regions, LPX is walking a fairly familiar route. It inherited a lot of stuff, majority of electronics and the software, from the Firebird and builds on. Body of this model is solid, single cut and made of maple back with flamed maple top. Classic body contour, 24-3/4" scale, 1.695" nut width, 12" fingerboard radius, set in neck joint and the tilted headstock with 3+3 tuners installed on it remind the player that he`s still playing an LP, but the electronics give him the possibility to play virtually any guitar he desires. There are three Gibson minibucker pickups installed in the regular pickups department. They`re accompanied by a piezo pickup integrated into the bridge. Bridge section is equipped with a tune-o-matic bridge and the stoptail bar in the back. Set in neck is made of mahogany and it features the classic slim taper contour in the back. On it`s top, there`s a 22-fret fingerboard made of granadilo. Dot inlays and standard-sized frets complete the fingerboard. Headstock is fit with a set of high tech Robohead tuning machines with an impressive 24:1 gear ratio. These tuners also have the ability to automatically keep the strings in tune and switch between the selected tunings. Pickups controls include master volume, master tone and a five-position blade switch in the conventional section. There`s also the Gear Shift knob, the key controls component. It has 11 rotary positions and is used to switch between the modes of operation, as well as to select particular patches and tunings from the library. There are also two three-way toggle switches. Blue one models the tone, while the red one deals with distortion type. Silver knob switches between the standard pickups and the piezo mode. These two can also be used mixed together and be hooked up to separate amps. On-board computer is equipped with Ableton Live Lite 8 Gibson Studio Edition and Guitar Rig 4 Pro. To connect to a PC, or laptop, LPX uses the external G-Node sound card which is included in the package. Also, there is the foot-switch board which connects with the system through bluetooth. Besides all this, the pack includes the programmable Bluetooth Continuous pedal.


LPX Full Specs

Tap on Spec for Quick Find
Body Shape LP
Body Type Solid Body
Body Construction Single cutaway
Body Wood Maple
Body Top Wood Maple (Flame)
Carved Top Yes
Bridge Tune-O-Matic
Bridge Stoptail
Number of Pickups 4
Bridge Pickup Type Minibucker
Bridge Pickup Type Piezo
Middle Pickup Type Minibucker
Neck Pickup Type Minibucker
Controls Volume
Controls Tone
Pickup Switch Type 5-Position Blade
Neck Wood Mahogany
Neck Shape Slim Taper
Neck Joint Set neck
Fingerboard Material Granadillo
Number of Frets 22
Fingerboard Inlays Dot
Hardware Chrome
Number of Strings 6
Tuners Robohead
String Nut Corian
Scale Length 24-3/4"
Nut Width 1.695"
Finish Gloss
Fingerboard Radius 12.00"

Guitars by Brand

Fender (380) Fender Custom Shop (110) Gibson (455) Gibson Custom (314) Epiphone (256) Ibanez (881) ESP (705) Dean (389) Jackson (431) Music Man (50) Gretsch Guitars (243) Daisy Rock (36) Paul Reed Smith (273) Washburn (142) Yamaha (50) EVH (7) Schecter (589) G&L (92) Squier by Fender (97) Danelectro (8) Peavey (49) Steinberger (11) Brian May Guitars (3) B.C. Rich (156) Rickenbacker (39) Laguna (11) Godin (105) Dan Armstrong (1) Parker (45) Traveler (26) Kramer (27) Hamer (55) Michael Kelly (61) Hagstrom (81) Jay Turser (44) Disney by Washburn (1) Fernandes (78) Taylor (41) Italia (48) DiPinto (15) Axl (34) Hohner (5) Spector (7) Wilson Brothers (7) Moog (1) Valley Arts (6) Breedlove (3) Hallmark (11) Minarik (4) Hofner (18) Rogue (5) Vox (9) Kay Vintage Reissue Guitars (1) Charvel (75) Richmond by Godin (6) Sterling by Music Man (22) Aria (62) Normandy (11) Luna (9) Cort (106) Guild (20) Alvarez (5) Saga (9) Johnson Guitars (9) Mitchell (7) Conklin (22) DeArmond (13) Voyage-Air (2) Lace (5) Silvertone Guitar (13) Titanic Guitars (4) Fret King (101) Ruokangas (13) Framus (129) Collings (15) Leather Guitars (7) Vigier Guitars (38) Jarrell Guitars (23) Peerless Guitars (36) Reverend (93) Carvin (54) Benedetto (14) Maton Guitars (12) DBZ Guitars (102) Line 6 (12) Boulder Creek (3) Stagg (1) Flight (3) Cruzer (5) Behringer (1) Vintage (38) Chapman Guitars (39) Legator Guitars (139) Caparison (44) Heritage Guitars (26) Ashton (1) Strandberg (37) Kiesel (98) Aristides (5) D`Angelico Guitars (29) Wylde Audio (15) Solar Guitars (23)
Show More Brands

Compare

1.
to
2.
Body Shape
LP
LP
Body Type
Solid Body
Solid Body
Body Construction
Single cutaway
Single cutaway
Body Wood
Maple
Mahogany
Body Top Wood
Maple (Flame)
Maple (Flame)
Carved Top
Yes
No
Bridge
Stoptail/Tune-O-Matic
Stoptail
Number of Pickups
4
2
Bridge Pickup Type
Minibucker/Piezo
Humbucker
Middle Pickup Type
Minibucker
No
Neck Pickup Type
Minibucker
Humbucker
Controls
Tone/Volume
Tone
Pickup Switch Type
5-Position Blade
3-way Pickup Selector
Neck Wood
Mahogany
Mahogany
Neck Shape
Slim Taper
Slim Taper
Neck Joint
Set neck
Set neck
Fingerboard Material
Granadillo
Rosewood
Number of Frets
22
22
Fingerboard Inlays
Dot
Trapezoid
Hardware
Chrome
Nickel
Number of Strings
6
6
Tuners
Robohead
TonePros
String Nut
Corian
No
Scale Length
24-3/4"
24-3/4"
Nut Width
1.695"
No
Finish
Gloss
Lacquer
Fingerboard Radius
12.00"
12.00"
1 User Review

Ron 8146 on 2017-06-02 17:13:42

Anybody out there knows how to set the piezo pick-up to a separate amp. I have three Musican mans with piezo pick-ups and they use a stero chord. I have the manuel on this but I can't find how to hook it up. [email protected].
