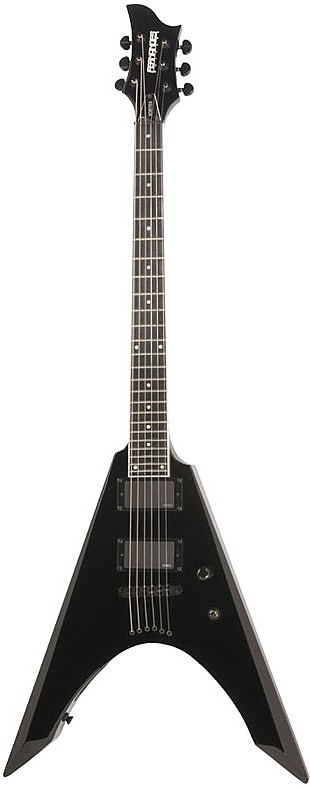

Vortex is Fernandes`s version of the modern Flying V/King V concept. 24-fret fingerboards, dual humbuckers (either passive or active), 25-1/2" scales and super fast necks and top-level build quality characterize the Vortex line. Vortex Raven Deluxe is a simple but deadly six-string guitar. Beveled alder body and fast maple neck make up the chassis of this speed demon. The neck runs through the body, bringing the ultimate sustain and stability. Ebony fingerboard tops the neck. It has 24 jumbo-sized frets, dot inlays and a 1-11/16" wide TUSQ nut. EMG 81/60 combo needs no introduction. Single volume knob and a three-way pickup switch constitute the controls. String-through tune-o-matic bridge and die-cast tuners complete the mighty Raven.


Vortex Raven Deluxe Full Specs

Tap on Spec for Quick Find
Body Shape V
Body Type Solid Body
Body Construction Neck-thru
Body Wood Alder
Neck Wood Maple
Neck Shape Series Standard
Neck Joint Neck-through
Fingerboard Material Ebony (Bound)
Number of Frets 24
Fret Size Jumbo
Fingerboard Inlays Dot
String Nut TUSQ™ String Nut
Nut Width 1.6875" (1-11/16")
Fingerboard Radius 14.00"
Number of Pickups 2
Bridge Pickup Type Active Humbucker
Neck Pickup Type Active Humbucker
Controls Volume
Pickup Switch Type 3-way Pickup Selector
Bridge Tune-O-Matic
Bridge String Through
Hardware Black
Number of Strings 6
Tuners Die-cast
Scale Length 25-1/2"
Finish Gloss

Guitars by Brand

Fender (380) Fender Custom Shop (110) Gibson (455) Gibson Custom (314) Epiphone (256) Ibanez (881) ESP (705) Dean (389) Jackson (431) Music Man (50) Gretsch Guitars (243) Daisy Rock (36) Paul Reed Smith (273) Washburn (142) Yamaha (50) EVH (7) Schecter (589) G&L (92) Squier by Fender (97) Danelectro (8) Peavey (49) Steinberger (11) Brian May Guitars (3) B.C. Rich (156) Rickenbacker (39) Laguna (11) Godin (105) Dan Armstrong (1) Parker (45) Traveler (26) Kramer (27) Hamer (55) Michael Kelly (61) Hagstrom (81) Jay Turser (44) Disney by Washburn (1) Fernandes (78) Taylor (41) Italia (48) DiPinto (15) Axl (34) Hohner (5) Spector (7) Wilson Brothers (7) Moog (1) Valley Arts (6) Breedlove (3) Hallmark (11) Minarik (4) Hofner (18) Rogue (5) Vox (9) Kay Vintage Reissue Guitars (1) Charvel (75) Richmond by Godin (6) Sterling by Music Man (22) Aria (62) Normandy (11) Luna (9) Cort (106) Guild (20) Alvarez (5) Saga (9) Johnson Guitars (9) Mitchell (7) Conklin (22) DeArmond (13) Voyage-Air (2) Lace (5) Silvertone Guitar (13) Titanic Guitars (4) Fret King (101) Ruokangas (13) Framus (129) Collings (15) Leather Guitars (7) Vigier Guitars (38) Jarrell Guitars (23) Peerless Guitars (36) Reverend (93) Carvin (54) Benedetto (14) Maton Guitars (12) DBZ Guitars (102) Line 6 (12) Boulder Creek (3) Stagg (1) Flight (3) Cruzer (5) Behringer (1) Vintage (38) Chapman Guitars (39) Legator Guitars (139) Caparison (44) Heritage Guitars (26) Ashton (1) Strandberg (37) Kiesel (98) Aristides (5) D`Angelico Guitars (29) Wylde Audio (15) Solar Guitars (23)
Show More Brands

Compare

1.
to
2.
Body Shape
V
V
Body Type
Solid Body
Solid Body
Body Construction
Neck-thru
No
Body Wood
Alder
Basswood
Neck Wood
Maple
Maple
Neck Shape
Series Standard
Series Standard
Neck Joint
Neck-through
Bolt-on
Fingerboard Material
Ebony (Bound)
Rosewood
Number of Frets
24
24
Fret Size
Jumbo
Jumbo
Fingerboard Inlays
Dot
Dot
String Nut
TUSQ™ String Nut
Locking
Nut Width
1.6875" (1-11/16")
1.625" (1-5/8")
Fingerboard Radius
14.00"
14.00"
Number of Pickups
2
2
Bridge Pickup Type
Active Humbucker
Humbucker
Neck Pickup Type
Active Humbucker
Humbucker
Controls
Volume
Tone
Pickup Switch Type
3-way Pickup Selector
3-way Pickup Selector
Bridge
String Through/Tune-O-Matic
Floyd Rose
Hardware
Black
Black
Number of Strings
6
6
Tuners
Die-cast
Die-cast
Scale Length
25-1/2"
25-1/2"
Finish
Gloss
Gloss
